Friday 28 November 2014

LAYOUT TOUR ARTICLE IN RAILMODEL JOURNAL, 2003

In the summer of 2003, Robert Schleicher of Railmodel Journal came to Vancouver looking for potential layouts to feature in the magazine.  Making contact through one of the local hobby shops, he arranged to view the layout in my basement.  After the shoot, we talked of an article and captions to accompany the photos and the result was published in November of that year.  This was part of the lead-up to the NMRA convention in Seattle in 2004.  It turned out that several Vancouver area layouts hosted operating sessions and tours in association with the Convention.

Recently,  we have had a few inquiries about the layout and its trackplan and herewith we post a scanned copy of the RMJ article in response to those requests.  The layout has been substantially developed and expanded since the article appeared and eventually, this blog will treat of the expanded trackplan which is an interesting development in its own right.  Today's post should provide an initial answer to the question.

The RMJ article had at one time been made available on the internet at: http://www.trainlife.com/magazines/pages/177/12799/november-2003-page-1  Unfortunately, the site no longer reproduces the article.  Here is the entire layout tour article with some additional comment.  Readers can click on the images for larger views of the pages and pictures.

 This cover shot shows No. 11, the Kootenay Express exiting the west portal of tunnel no. 1 at Mileage 19.7.  Engine 5120 has been modified since the photo was taken to bring it more into conformity with its prototype.  See the post at: http://kettlevalleymodelrailway.blogspot.ca/2014/10/the-passenger-trains-of-dave-hanas.html

A small error crept into the text in the middle column of page 29.  It should read,"The members are usually made of 3 1/2-inch wide "boards" cut from 5/8-inch plywood."  These plywood boards are more stable than solid stock and usually less expensive.  In a few cases we used solid maple hardwood for longer spans.  The caboose was built from a Juneco kit but has long been retired after the purchase of Trueline Trains versions.  The green "beach-ball" on the ground is a marker for a Kadee uncoupling magnet and should have been removed for the photo.
Page 30 has two photos taken from opposite ends of the room.  Photo 1 shows Brookmere railyard looking east.  The Coquihalla sub is on the upper level and this same view looks west on the upper level.  For operations it would have been better to have a consistent east and west orientation.  This is one small drawback of a two level layout with a helix in the middle.  It is a small price to pay for doubling the length of the mainline and allowing additional scenic possibilities.

The first of the trackplan pages follows and shows Coquihalla summit with its Wye for turning pushers and work trains.  To the left of the wye is the entry into the helix.  Beside the camera symbol #16 is a line designating the hinge side of the entry gate.  The other brown line suggests the leading edge of the gate and its swing line.  The caption for photo 9 refers to the absence of "extra flags" which is no longer the case.  Extra flags and green flags for a "following section" have only recently been brought into use for our operating sessions.  They are a nice detail that is rarely modeled and have the added operational feature of being removable.
 The upper level track plan is shown on page 32.  At the time of Robert Schleicher's visit, part of the upper level was unbuilt so it does not show in the photos (#1 & #4).  The Wye at Hope connects with the lead for the staging tracks and is useful for turning trains between sessions as well as functioning as the real one did for turning pushers.  It may not be evident immediately, but the helix is not connected with the track in this level.  The mainline to the staging tracks circles the outside of the helix tub.  These turn-back loops are not objectionable as they are out of sight and circle the tub making very efficient use of the space.


 Here is the lower level. The Brookmere railyard is very close to the original track layout in 1949, only diverging in length and the end curves.  And the location of one switch near the water tower has been slightly altered due to the compression that comes with modeling.  Interesting that one veteran railroader spotted the alteration early in his viewing of the layout.  But engineman,  Dick Brocola, complimented the accuracy of the track alignment and scenic elements saying that they truly reflected his memories of working in Brookmere.  We will have more to say on this subject when we treat of Brookmere in depth in a future post.  To the left of Princeton town is the helix tub.  Entry to the main line helix is from the junction switch at Brodie.  Taking the left or normal route the track enters the helix on a 2.2% grade up to the summit at Coquihalla.  The track traverses 4 1/2 turns on a radius of 31" or diameter of 62".  Most of the topmost turn is visible and sceniced.  A train will travel 1.2 scale miles while in the helix.  The elevation gain is 22 1/2" from Brodie to Coquihalla.  The track that diverges from Brodie junction represents the Merritt sub and travels down on its own one-turn helix below the mainline to two staging tracks.

Pages 34 and 35 were a centre spread that has been stitched together by a follower friend.  Thank you Colin.  This is an overview of the Brookmere Railyard looking west.  The caption continues:
"This division point serves as a base for the pushers and is the crew change point between the Coquihalla and Princeton Subdivisions.  The new roundhouse foundation has been poured as part of the plan to rebuild the roundhouse which had been destroyed in a boiler explosion early this year.  The modeling in this scene is very close to full scale in all three dimensions."



Various shots of the layout are on page 36, photos 4 and 5 trying unsuccessfully to illustrate the entry gate to the layout room.  Photo 5 wrongly denotes the gate as being in the closed position when in fact it is open and in photo 4 it is closed.  Photo 3 is not Coquihalla siding but mileage 19.7.  Brookmere yard is below.

Shots of Coquihalla summit.
Another two page spread, stitched together again by my friend Colin..  The modeled Timetable here has been superseded by Timetable No. 94.  This model trestle, Mileage 20.6, was built from a timber off the original one, all the wood components being milled in our shop.



This concludes the article.  Thanks to Robert Schleicher and his inspirational model railroad magazine.
Now that I am un-retired, we will think in terms of bi-weekly posts, meaning that the next post will probably be on Dec 12.
Not sure what the future brings but it will inevitably concern detail on aspects of the prototype Kettle Valley railway and our efforts to represent it in scale.

Coquihalla Man

Monday 17 November 2014

MILL GONDOLAS ON THE KETTLE VALLEY

Canadian Pacific's Gondolas went through significant evolution over the years from the typical, early wood construction with some steel components to the later all-steel versions.  One interesting Gondola Car had steel centre sills and frame, a wood deck and wood sides flanked by wood posts set into stake pockets.  They were listed in the CPR's SUMMARY OF EQUIPMENT or M.P. 14 as "Gondola, Stone", or "Gondola, Stone Sides".  Commonly called "Stone Cars".  They were basically flat cars with removable, planked sides.  Strictly speaking, not a Mill Gon but an early precursor.  Here is a drawing of one. Click on the photo for enlargement.

Nor West models produced a kit for this car some years ago but it is now out of production.  BGR models acquired the molds and masters and may reissue this kit.
Riddell's Canadian Pacific Color Guide photo of the Stone Car on page 84.  Still bearing car No. 338206 in 1970.  Riddell comments that they were used for ballast service.  I believe they were also used in cinder service.  One could be built from the Tichy Flat car kit by adding the stakes and boards in styrene.  From the photo and the drawing, one can see that the prototype had 13 stake pockets so that one of them was centered on the car.  This necessitated the steel door to be placed off centre.  My friend Len built a few from the Nor West kits and here are two of them lacking only numbers and exterior weathering.

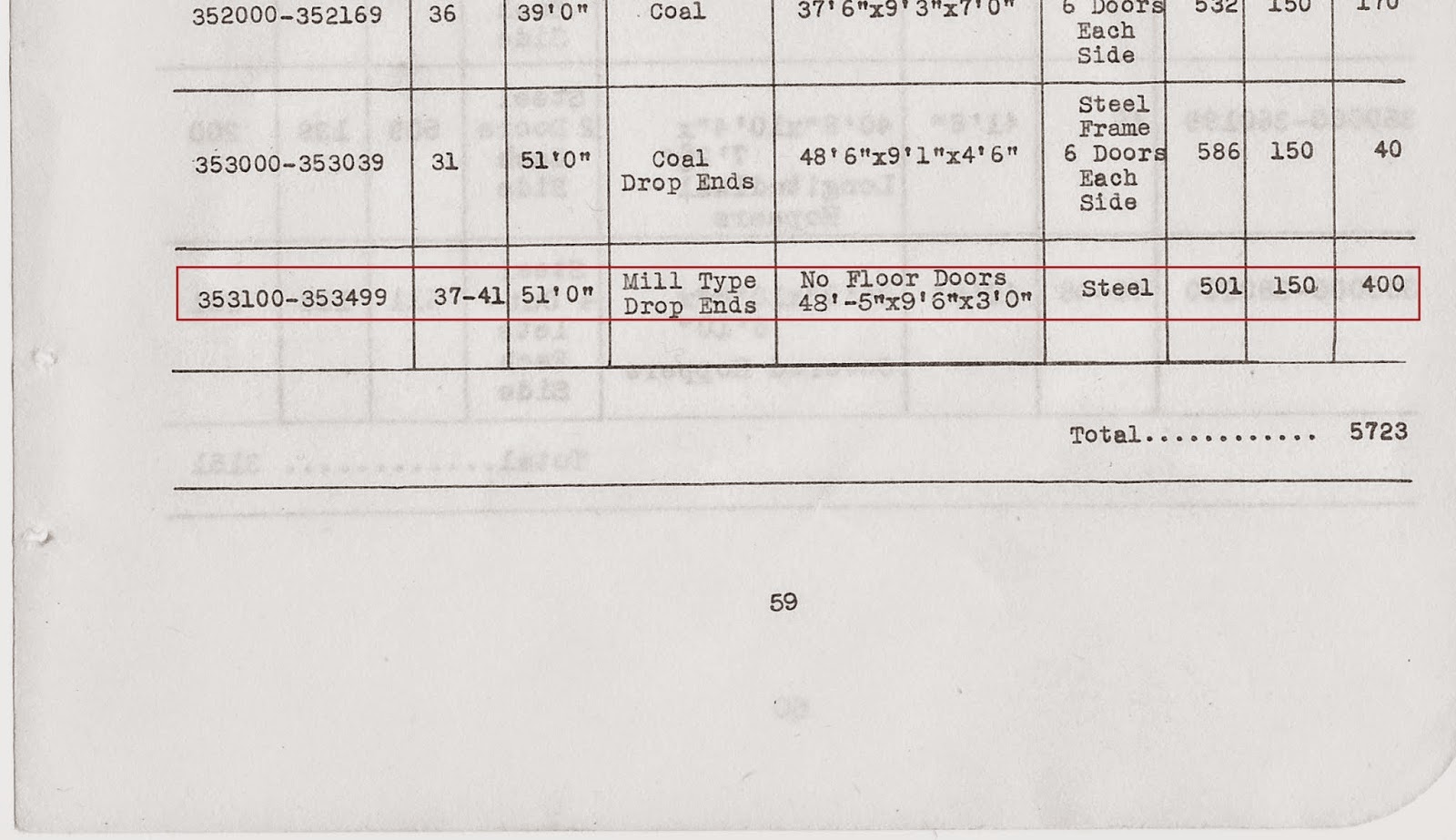

From 1937 to 1941, 400 cars were built for the CPR as "Gondola - Mill Type, Drop Ends".  They were the first of their kind.  They carried numbers 353,100 to 353,499 with interior dimensions of 48'-5" x 9'-6" x 3'-0".  It is
possible that they were originally built with straight side sills but later needing strengthening.  The theory is that a fishbelly reinforcement was added to these sides at a later date.
There are few photos of them but Marc Simpson Railway Photos: mlwm420@gmail.com sells this good 3/4 view of one carrying panel track sections.  Although it is in Company Service, it still carries its original number: CP 353321.  The gaudy yellow safety items were added at a much later date.  Of particular interest is the arrangement of the road name lettering.
None of these cars appear in Riddell's book.

After studying the photo and glimpses of them in other shots, I kit-bashed a few that are close enough for me and my budget.  Here is one.








This model was built from a Proto 2000 kit which were in plentiful supply at hobby shops and train shows though they are a little harder to find now.  They are fairly cheap.  It turned out that by cutting the centre panel out and reconnecting the two remaining parts, the length and width were a match for the prototype.  I cut them on my table saw with a plywood blade (80 tooth) and a very accurate sliding table - accurate in that the sliding table cuts absolutely square.  I cut a little proud of the centre of the ribs to allow for styrene melting under the action of the glue when pushing the halves back together tight to a straight edge.  A major cosmetic feature of the Canadian Gondolas is the "cut" or slope of the side sill, which sloped over only one panel instead of two which was the American practice.  To match it we must continue the level line above the trucks and then shave the sloping panel to the new angle to match.  Rivet decals could be added to the newly sloped side sill.  The main discrepancy with this kit-bash are that the ribs are "hat - section" style and they are spaced differently than the prototype which had 11 panels whereas the model has 14.  Also the interior height is only 3' - 0" and the Proto model is a bit more but this is close enough for me. The hat braces are not so delicate as the "Z - braces of the later gons.  The interior securement hoops, the positionable drop ends and the brake lever are nice features of this model and with the added details of wire grabs and stirrups, the result is a good representation.  I had a few Athearn models like this but they lacked these features, so they were sold off when these upgraded models were added to the roster.  One bonus to consider is that the Proto 2000 kits with CPR lettering can remain without modification as the car numbers are correct for this car.  The model pictured bears the stock model lettering.  The shape of the letter "C" in the reporting marks is the only deficiency in the otherwise very nice lettering.

Later in the mid 1940's, the CPR managed to acquire 1200 Gondolas despite the wartime restrictions.  This batch of cars were in the series 339,000 to 340,199 and were four feet longer than the 48' - 5" car described above.  This is the car that Rapido has recently marketed.  Its "Z - brace" ribs are easily broken if handled roughly but Rapido did a fine job of a very important Canadian car which all major railways carried on their roster. They are still around in limited numbers on OCS having lived a long life despite hard service.
For our 1949 Kettle Valley layout, we kit-bashed several from the Proto 2000 kit which matches all major dimensions and details except the sides.  The ribs on the kit sides were shaved off very carefully between the end posts.  Cast resin sides by Brian Pate: http://www3.telus.net/KMR/
and a cap rail were then attached to the sides with CA glue and the usual grabs and stirrups added.  A lead weight was inserted beneath the interior floor as the steel weights supplied with the kit can be affected by uncoupling magnets.  I must admit that in the building of the models that several of these fine "Z" section ribs were broken - just like the Rapido's can be.  It is a little tedious to fix them.  But well worth it to do the model since it is an important car for the era of our chosen prototype railway.  We built these a few years ago before the Rapido model was announced.  Rapido's website: http://www.rapidotrains.com/gon.html

Here is the version in service on the Kettle Valley Model Railway.  CN Sig Warm Black paint, Black Cat decals, Bragdon powders for weathering, Accurail trucks, Intermountain semi-scale wheelsets, and Kadee short "scale" whisker couplers.





Riddell's Color Guide has four photos of these cars on pages 84 & 85.

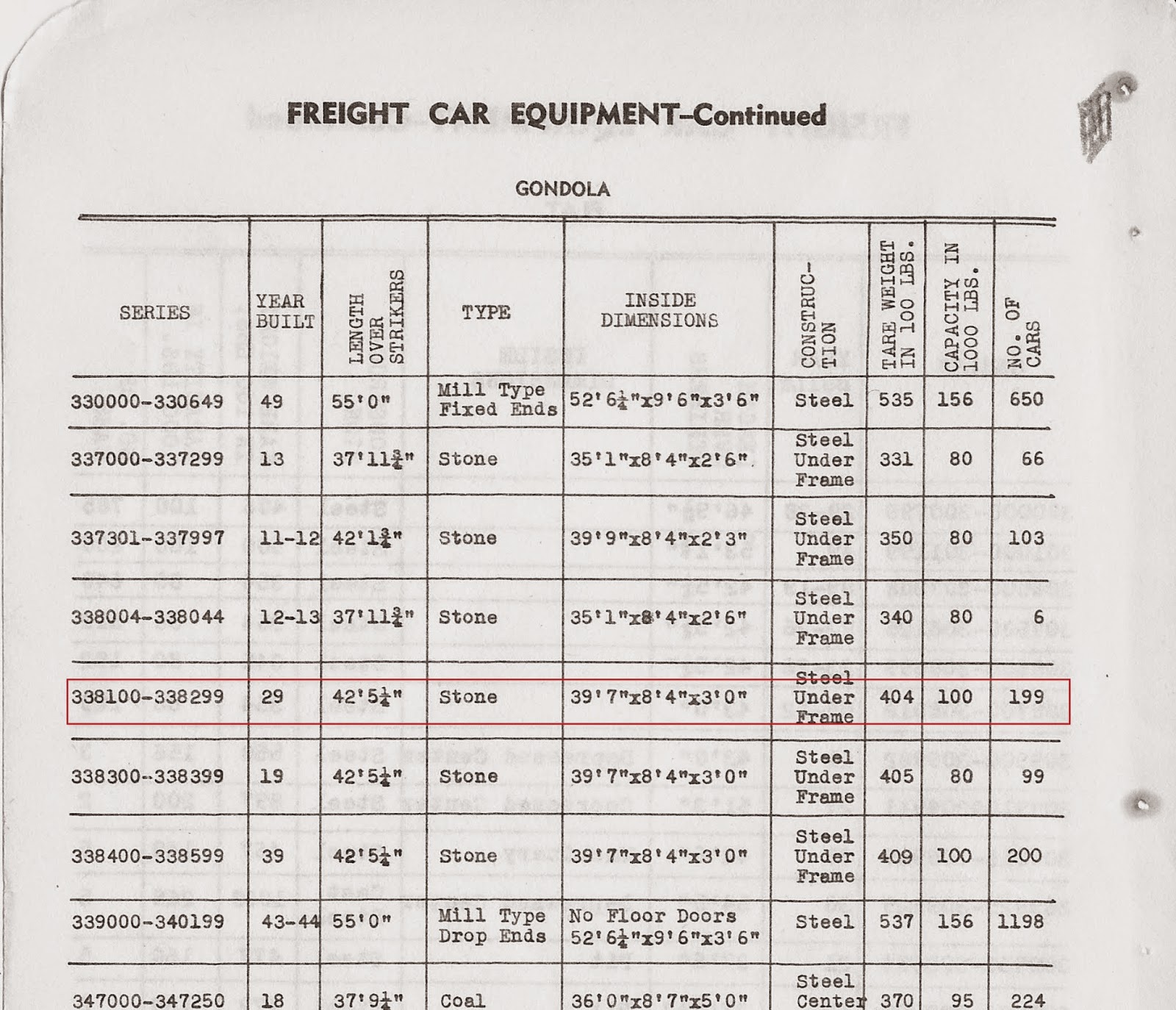

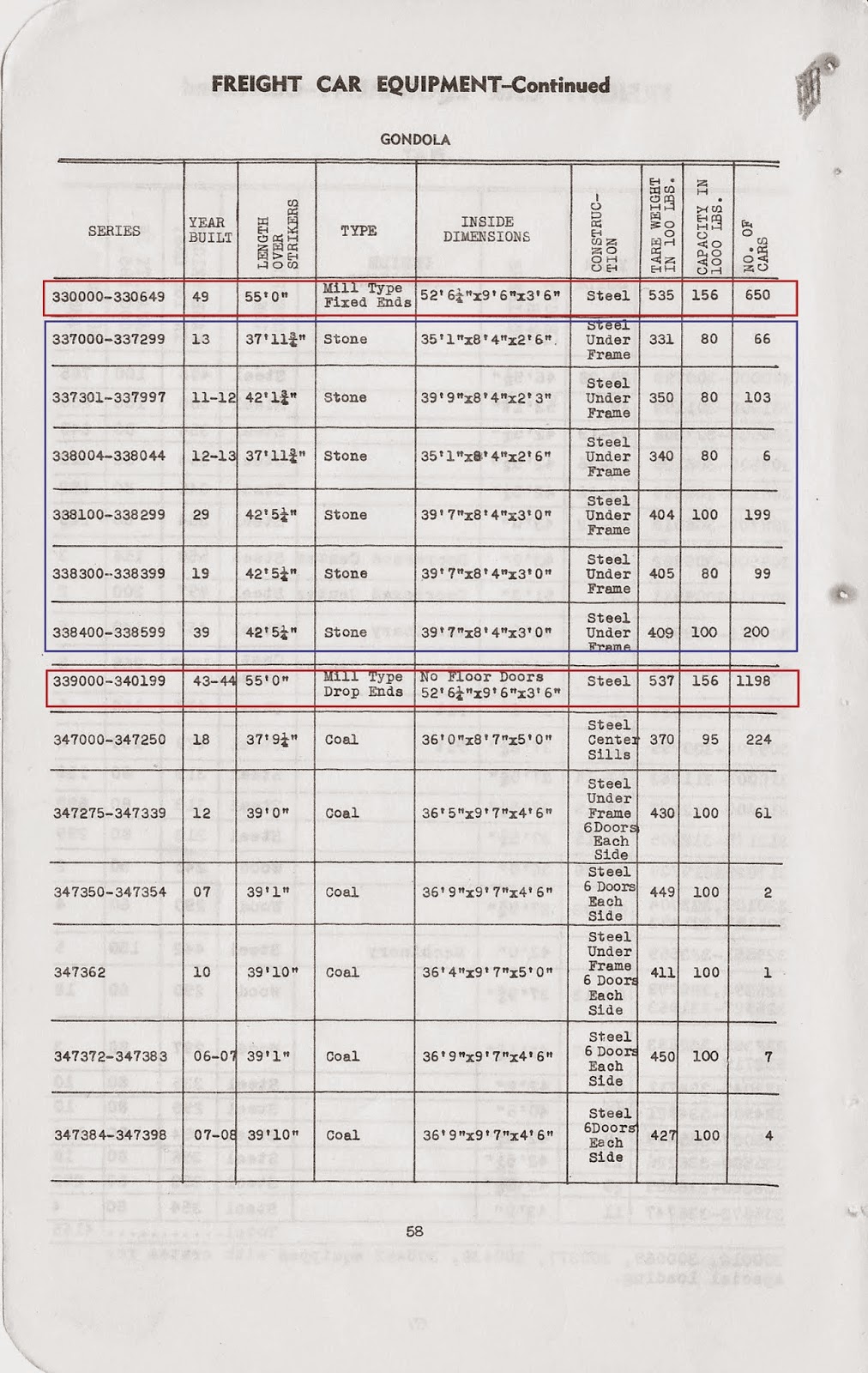

As can be found on the page from the M.P. - 14 shown above, there were an additional 650 Mill Gondolas built in 1949: numbers 330,000 - 330,649.  This order was unique in that the cars came with "Fixed Ends", unlike further orders in the 1950's all of which are listed as "Mill Type - Drop Ends".  All orders but one shared the same interior dimensions of 52' - 6" x 9' - 6" x 3' - 6".
Here is a shot of a gon in Midway awaiting a load of railway ties in the mid 80's.  Note bulging sides.  I cannot explain the Car No. which does not appear even in the M.P. - 14 for 1965.  Perhaps there was a re-numbering at some point.  It certainly looks the same as the other 52 foot Gons.


And a couple of interior shots I took some years ago of two different cars.  Note floor finishes.  Car Nos. unknown.  Securement hoops appear on the car on the left but not on the car on the right.  That is a ladder against the car end added more recently for accessing the interior of the car which had a service number.






















Studying the M.P. - 14's for 1947, 1950, 1952, 1956, and 1965, we present the following list of build years and numbers.  Note that the numbers jump around a bit.  The car numbers of successive batches did not follow in numerical order.  Also noteworthy is that the 1965 M.P. - 14 lists the 1949 cars as built in 1945 in disagreement with all earlier M.P. - 14's.  Even clerks can err.
  • 1937-41 Nos. 353,100 - 353,499   400 cars
  • 1943:     Nos. 339,000 - 339,499   500 cars
  • 1944:     Nos. 339,500 - 339,999   500 cars
  • 1945:     Nos. 340,000 - 340,199   200 cars
  • 1949:     Nos. 330,000 - 330,649   650 cars with Fixed Ends
  • 1951:     Nos. 338,700 - 338,999   300 cars
  • 1952:     Nos. 340,200 - 340,499   300 cars
  • 1954:     Nos. 340,500 - 340,999  500 cars
  • 1954:     Nos. 341,000 - 341,499  500 cars Interior height 4’- 0”
  • 1955:     Nos. 341,500 - 351,694   195 cars
  • 1955:     Nos. 341,695 - 341,699       5 cars with nailable steel floor
  • 1956:     Nos. 341,700 - 341,899   200 cars
  • 1956-7:  Nos. 342,700 - 342,891   191 cars
  • 1957:     Nos. 341,900 - 342,396   360? cars
  • 1957:     Nos. 336,800 - 336,849      50 cars
  • 1958:     Nos. 336,850 - 337,899      50 cars
  • 1958:     Nos. 342,400 - 342,699   300 cars
·         Total                                                      5,201 cars
And of course, the shorter (48'-5" x 9'-6" x 3'-0") Mill Gons: 1937-41 Nos. 353,100 - 353,499  400 cars.

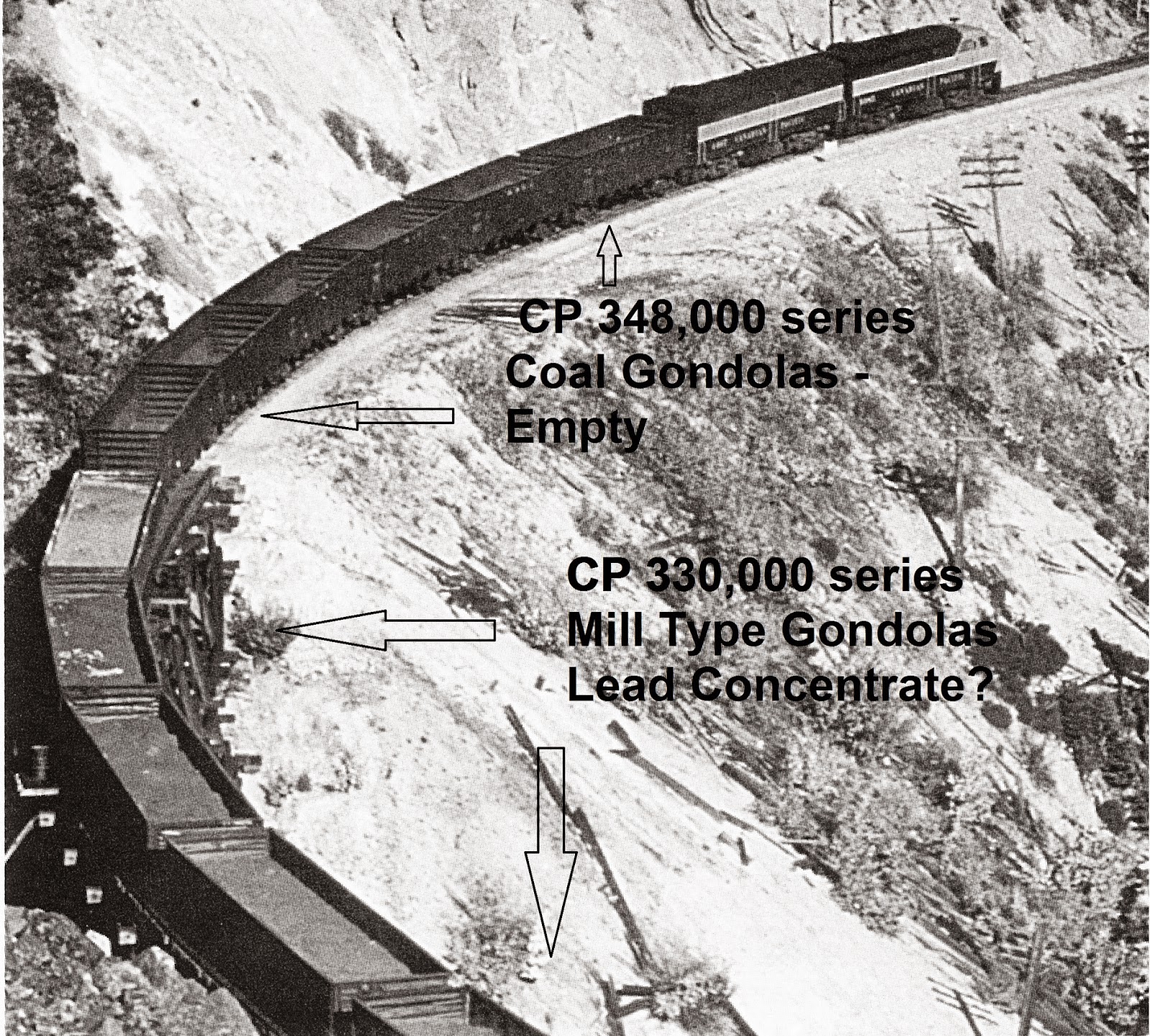

Finally, a crop from a photo that has been published several times which clearly shows Coal Gondolas of the 348000 series in service (see previous post) and the Mill Gons featured in this post.  The first 6 cars are empties probably going to Princeton and then to Allenby on the Copper Mountain Sub to transport loads of copper concentrate for the Westward trip to the Smelter in Tacoma Washington.  This seems to be the car of choice for this lading as soon as they entered service in 1948.  An average of 3 per day were filled at the concentrator and brought down the hill to Princeton for lifting by the Westbound way-freights.  (We will give some attention to the Copper Mountain railway activity in a future post.)  The lighter colour of the sides about half-way up on the interior wall suggest that they are in concentrate service due to its caustic properties that have affected the paint.  Had they been in regular coal service they would be filled to the brim and then some.
The next 5 cars are Mill Gondolas - possibly those with fixed ends - with a lading that only partially fills the car.  Again, this suggests that the mineral is a heavy one, coming up from the coast.  The most likely candidate is lead concentrate from somewhere off-shore, destined for smelting at the Cominco plant in Trail.  Old timers commented on the phenomenal weight of the carloads of lead concentrate that necessitated a short but heavy extra East during steam days.  This photo was taken by the special photographer of the CPR, Nichloas Morant in 1954.  Those nearly new Alcos seem to be handling the train well enough.  Morant took another shot of the tail end of the same train which has also been published ( see Garden p. 354; Sanford p. 116).  This photo provides solid evidence that Gondolas were prominent in the freight trains of the Kettle Valley.   For full photo See Doeksen Vol 1 p. 42; Bain Vol. vii, p. 18; Dean & Hanna p. 54.

A few statistics follow on the use of Mill Gondolas gathered from the Penticton Scale Reports of 1961.  These 140 loads were all originating from on-line customers on the Kettle Valley railway, one of which was destined for an on-line customer.  "Lumber" could mean logs, poles or timbers.  "Concentrates" were all copper from Greenwood going to Tacoma.  The Silica, Quartz and Rock originated in Oliver and went to Washington State.  Most of these loads traveled Westward.  This list of course is not representative of all originating lading as no reefers of fruit or vegetables were weighed at the Penticton Scale, these commodities being weighed in the various packing houses.  Only a few loads originating in Princeton are recorded in the scale reports and no cars from the Midway and Carmi areas appear either.  Yet we know that many loads of concentrate, ties and lumber were shipped Eastward from there and were presumably weighed elsewhere such as at the Nelson scale.  Nevertheless, the scale reports do give us interesting information on car types, their movements and their ladings.

DESCRIPTION LADING
DESTINATION
Year Blt Car Nos. Total Lumber Concentrate Silica Quartz Rock Ties Scrap
East West On-line
49 330003 - 330500 15
7 1 2 4 1


15
43-44 339003 - 340173 41 2 16 3 3 13 1 2
1 39
52-57 340272 - 342152 73 6 35 3 9 8 6 5
1 72
37-41 353109 - 353485 11
4 2 2 2 1

1 9 1














Totals
140 8 62 9 16 27 9 7
3 135 1

We are a bit delayed on this post as the research and tabulation required no small amount of time and effort during a time when I have been busy with work and resting from work.  Add to that a Train Show and an operating session.  So, a busy time.  This will have to do till November 28th as I have another operating session and some scenery to build for the new bridge.  I hope to make the latter, the subject of a post soon.

Till then;

Coquihalla Man
